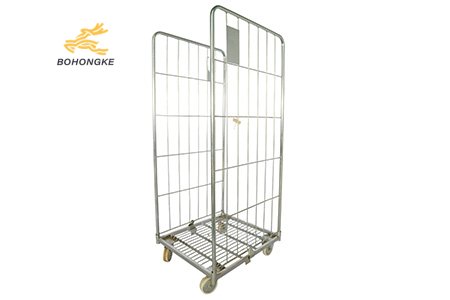

What Is a 2-Sided Roll Cage Trolley?

A 2-sided roll cage trolley—often called a "double-sided roll cage trolley" or "two-sided wire mesh trolley"—is a versatile material-handling cart built with two fixed mesh sides and two open ends. Compared to traditional four-sided cages, its open-front and open-back design allows significantly faster loading and unloading. Typically made from robust steel wire mesh and tubular steel framing, a 2-sided roll cage trolley combines the strength of a warehouse cart with the accessibility of a platform trolley. Its open ends give much clearer visibility of contents and much quicker access for forklifts.

Intended Purpose and Core Advantages

A 2-sided roll cage trolley is engineered to streamline product movement, optimize storage density, and dramatically cut handling time. Specifically, it is designed to:

Load and Unload More Quickly:

With only two sides enclosed, operators can slide pallets, cartons, or loose items in and out much more rapidly than with a fully enclosed cart.

Use Warehouse Space Much More Efficiently:

The collapsible chassis (see below) lets trolleys nest when empty, freeing up far more aisle and staging area space than fixed-frame models.

Provide Better Visibility:

The open ends and mesh sides let workers visually confirm contents at a glance, saving much more time versus solid-panel options.

Offer Safer Containment Than Platform Trolleys:

While still easy to access, the mesh sides securely contain goods during transit—offering notably better safety than a flat platform cart without sides.

By combining rapid access, secure containment, and highly efficient collapsibility, the 2-sided roll cage trolley has become the go-to solution in many modern warehouses, supermarkets, laundries, and logistics hubs.

Chassis Types: A-Frame, Z-Frame, and Square Frame

The chassis—or base structure—of a 2-sided roll cage trolley determines how it folds, stacks, and nests when not in use. BOHONGKE offers three main chassis designs, each delivering different folding performance and space savings:

1. A-Frame Chassis

Design & Folding:

The A-frame chassis uses a triangular support under the mesh cage. When the sides collapse inward, the A-frame legs fold in a scissor-like motion, allowing multiple empty trolleys to nest together far more compactly than a rigid-frame design.

Advantages:

Compared to a square-frame base, the A-frame design is noticeably lighter and typically folds flatter, saving substantially more floor space when many empty trolleys are stacked. Its angled support beams also distribute weight more evenly, making it notably more stable under heavy loads.

Best For:

Operations that nest and de-nest daily—such as busy supermarkets and large fulfillment centers—where every bit of space matters.

2. Z-Frame Chassis

Design & Folding:

The Z-frame chassis features a "Z"-shaped steel tube serving as both the base and hinge. As the mesh sides collapse inward, the Z-shape pivots, letting the trolley nest even more deeply than the A-frame.

Advantages:

Because the Z-frame tucks under more completely, it achieves the highest nesting efficiency among the three. It also remains very stable on uneven floors due to its angled Z beams.

Best For:

Environments where empty trolley storage space is at a premium—such as small laundries or refrigerated storage rooms.

3. Square Frame Chassis

Design & Folding:

The square frame has a rectangular perimeter under the cage. When collapsing, the sides fold inward while the square base remains intact, resulting in a somewhat thicker stack than the other two types.

Advantages:

Although it doesn't fold as flat as the A-frame or Z-frame, the square frame is appreciably more rigid and can carry noticeably heavier loads, since its entire base perimeter supports the weight.

Best For:

Heavy-duty uses like industrial freight handling or bulk dairy transport, where maximum load capacity is more crucial than nesting efficiency.

By choosing among A-frame, Z-frame, and square-frame chassis, customers can prioritize either maximum nesting efficiency (Z-frame), balanced folding performance and stability (A-frame), or exceptional load capacity (square frame).

Materials: Steel Alloys and Their Benefits

A high-quality 2-sided roll cage trolley must endure daily wear, heavy loads, and sometimes harsh environments. BOHONGKE's roll cage trolleys are constructed with premium steel alloys and reinforced components that make them significantly more durable and reliable than lower-grade alternatives. Key material elements include:

1. High-Tensile Cold-Rolled Steel Wire

Grade & Characteristics:

Typically thicker and stronger than hot-rolled alternatives, cold-rolled wire delivers far better fatigue resistance.

Benefits:

Cold rolling yields a smoother surface finish—improving coating adhesion—and withstands repetitive loading much better than lower-tensile materials.

2. Carbon Steel Tubing for Frames

Grade & Characteristics:

Made from high-grade carbon steel tubing that offers an outstanding strength-to-weight ratio.

Benefits:

Compared to mild steel, this tubing supports noticeably heavier loads without a significant weight penalty, making trolleys strong yet still easy to maneuver manually.

3. Reinforced Corner Brackets & Gussets

Material:

Heavy-duty stamped steel or cast-iron brackets at each cage corner.

Benefits:

These reinforced joints boost structural rigidity substantially more than fully welded corners, reducing the risk of frame distortion under heavy impact loads.

4. Fasteners & Axles

Material:

Galvanized or stainless-steel nuts, bolts, and axle pins.

Benefits:

Galvanized fasteners resist rust far better than plain steel—ideal for moist environments—while stainless-steel options provide even greater corrosion resistance for extremely harsh conditions.

By combining high-tensile wire, top-grade carbon steel tubing, and corrosion-resistant hardware, BOHONGKE's 2-sided roll cage trolleys enjoy a noticeably longer service life and considerably lower lifecycle costs compared to cheaper, low-grade alternatives.

Surface Treatments: Methods, Pros & Cons, and Applications

The finish on a roll cage trolley affects its appearance, durability, corrosion resistance, and maintenance needs. BOHONGKE offers several advanced finishing options to suit diverse industry demands:

1. Powder Coating (Epoxy-Polyester Hybrid)

Process:

After shot blasting to strip away mill scale and contaminants, steel components receive an electrostatic application of epoxy-polyester powder and then run through a high-temperature curing oven.

Pros:

Superior Corrosion Resistance:

This coating resists chipping, scratching, and fading much better than standard wet paint—lasting considerably longer in humid or wet conditions.

Eco-Friendly:

Because it emits virtually no VOCs, it's far more environmentally friendly than solvent-based paints.

Uniform Finish:

The electrostatic process delivers far more consistent color coverage, without the drips or runs common in liquid paint.

Cons:

Higher Initial Cost:

Generally more expensive than basic wet paint, though long-term durability offsets upfront investment.

Complex Repairs:

Spot repairs require specialized powder equipment or full re-coating, rather than a simple touch-up.

Ideal Applications:

Supermarkets, retail settings, and logistics centers where aesthetics and corrosion protection are equally valued.

2. Hot-Dip Galvanizing

Process:

Fully welded cages and chassis are submerged in molten zinc to form a metallurgical bond, creating a thick zinc layer around every surface.

Pros:

Ultimate Rust Protection:

This finish self-heals minor scratches and endures much longer than other coatings—often surviving far beyond a typical warehouse lifespan.

Low Maintenance:

After galvanizing, parts seldom require upkeep, making it the most cost-effective choice over the trolley's lifetime if corrosion is a major concern.

Cons:

Rougher Appearance:

The spangled finish is less visually uniform than powder coating.

Added Weight:

The zinc layer adds noticeable weight, which can reduce maximum load capacity slightly.

Ideal Applications:

Laundries, dairy processing, cold storage, or any environment with frequent washdowns or heavy moisture exposure.

3. Electroplated Zinc (Zinc Plating)

Process:

Components are acid-etched and then electroplated with a thin zinc layer, followed by a chromate passivation.

Pros:

More Budget-Friendly:

Upfront costs are lower than hot-dip galvanizing, making it the go-to for indoor warehouses.

Smoother Finish:

Delivers a shinier, more polished appearance than galvanizing.

Cons:

Less Durable Under Harsh Conditions:

Its corrosion resistance is noticeably lower; it will show wear far sooner if exposed to moisture or chemicals.

Chipping Risk:

The plating can flake near weld seams if not properly pre-treated.

Ideal Applications:

Dry warehouses, retail backrooms, and logistics hubs where heavy corrosion resistance isn't essential.

4. Electrostatic Rubber Coating (Optional)

Process:

Specialized rubberized powder is sprayed electrostatically and cured at moderate temperatures.

Pros:

Quieter Operation:

The cushioned surface dampens vibrations, making it noticeably quieter than powder-coated surfaces—ideal for noise-sensitive environments like hospitals or libraries.

Better Grip:

Provides a non-slip surface, preventing items from shifting during transit.

Cons:

Lower Abrasion Resistance:

Not as tough as epoxy-polyester powder, so it will show wear sooner under heavy use.

Limited Color Options:

Usually available only in black or gray.

Ideal Applications:

Medical facility laundries, library book carts, and light-duty indoor logistics where quiet operation and added grip matter.

Selecting the right surface treatment—whether powder coating, hot-dip galvanizing, zinc plating, or rubber coating—lets customers tailor their 2-sided roll cage trolleys for maximum longevity and performance in virtually any setting.

2-Sided Roll Cage Trolley Production Process

BOHONGKE's rigorous production flow ensures every 2-sided roll cage trolley exceeds industry expectations. The general manufacturing steps are:

1. Raw Material Procurement & Inspection

Steel wire and tubing come from ISO-certified suppliers.

Incoming materials undergo more stringent testing than typical industry requirements; only those that surpass BOHONGKE's internal benchmarks move forward.

2. Wire Mesh Fabrication

Cutting & Straightening:

Cold-rolled wire coils are straightened and precisely cut.

Mesh Welding:

Automated high-frequency welders create uniform, consistent welds that are appreciably stronger than manual spot welding.

Trimming & Shaping:

CNC-controlled shearing machines ensure perfectly square, uniformly aligned mesh panels.

3. Frame & Chassis Assembly

Tubing Cutting & Bending:

Carbon steel tubes are cut by CNC saws, then bent into "A," "Z," or "square" profiles using programmable mandrel benders.

Spot Welding & Jig Fixturing:

Parts are fixed in industrial jigs to maintain exact alignment while robotic welders tack initial points—ensuring dimensional accuracy that surpasses purely manual assembly.

Full Weld Execution:

Skilled welders finalize seam welding with a mix of MIG and TIG techniques, focusing on high-load areas.

Visual & Ultrasonic Inspection:

Every weld is visually reviewed and spot-checked with ultrasonic flaw detectors to catch any subsurface defects before moving on.

4. Surface Treatment Preparation

Shot Blasting:

Cages and frames travel on an overhead conveyor through a grit-blast process that thoroughly removes mill scale and contaminants—an essential step for superior coating adhesion.

Degreasing & Rinsing:

After blasting, parts are cleaned in alkaline tanks and rinsed in deionized water to eliminate even minute residues.

5. Surface Finishing

Powder Coating Line:

For powder-coated carts, components pass through an electrostatic station and then a curing oven—resulting in a finish that lasts much longer than conventional paint.

Galvanizing Station:

For hot-dip galvanizing, components are submerged in a molten zinc kettle, then quenched and passivated to form a zinc-iron alloy layer that outlasts nearly all other finishes.

Zinc Plating Line:

Plated units travel through acid pickling, zinc plating, and chromate passivation baths—delivering a smoother finish but with a noticeably shorter corrosion resistance span than hot-dip galvanizing.

Curing & Drying:

All parts undergo a final curing or drying cycle to harden coatings and remove any residual chemicals.

6. Final Assembly & Quality Control

Hardware Insertion:

Galvanized or stainless-steel fasteners, axles, and load wheels are installed—BOHONGKE selects high-capacity roller bearings and large polyurethane wheels for smoother movement and better floor protection.

Operational Testing:

Each trolley is tested for rolling resistance, load capacity (well beyond its rated capacity to confirm safety), and foldability.

Dimensional Check:

Randomly sampled units are measured to ensure they meet BOHONGKE's exceptionally tight tolerances—far stricter than many competitors.

Packaging & Labeling:

Finished trolleys are wrapped in protective film and placed on stackable wooden pallets. Each unit features a serialized barcode label for traceability and hassle-free after-sales support.

This multi-stage, quality-focused production cycle ensures BOHONGKE's 2-sided roll cage trolleys are notably more reliable, more durable, and more consistent than many alternatives on the market.

Applications & Industry Use Cases

A 2-sided roll cage trolley's flexibility makes it ideal for numerous industries. Its combination of quick access, secure containment, and superb space savings delivers clear productivity gains—often making it the preferred choice over single-sided cages or flat platform trucks. Key application areas include:

1. Laundry & Textile Services

Why It Works:

In large commercial laundries, carts carry linens, uniforms, or towels. The open-front design lets staff slide bulky bins or stacked linens in and out far more quickly than with closed cages—resulting in much faster sorting and distribution. The mesh sides also enable better ventilation, reducing mildew and odors more effectively.

Real-World Benefit:

Many laundries find that using 2-sided trolleys boosts daily throughput by allowing workers to load from either end instead of just one—accelerating their entire workflow.

2. Milk & Dairy Transport

Why It Works:

Dairy producers frequently move milk crates or bulk containers from filling stations to refrigeration units. The sturdy mesh sides prevent containers from shifting, while the foldable chassis saves a great deal of space in both cooled and dry storage areas.

Real-World Benefit:

With a hot-dip galvanized finish, these trolleys withstand frequent washdowns and moisture exposure much better than non-galvanized carts, giving them a noticeably longer service life before needing replacement.

3. Supermarkets & Retail Stocking

Why It Works:

Stockrooms in supermarkets often feature narrow aisles and high shelving. A 2-sided trolley easily maneuvers into tight corridors, and staff can replenish shelves from either end—making stocking noticeably faster than with single-sided trolleys.

Real-World Benefit:

Because the trolleys collapse and nest so efficiently, supermarkets gain much more backroom space—critical during peak sale periods when every square foot counts.

4. Warehouse & Distribution Centers

Why It Works:

In large distribution hubs, operators use roll cage trolleys to shuttle partial pallets, cartons, and polybags between pick stations and loading docks. The lightweight yet sturdy construction allows for much quicker manual movement over long shifts, reducing operator fatigue compared to heavier platform trucks.

Real-World Benefit:

Many 3PL providers report noticeably lower labor costs when switching to 2-sided trolleys because fewer staff are needed to load and unload freight—thanks to the trolley's easy-access design.

5. Freight & Logistics

Why It Works:

At courier hubs and last-mile delivery centers, packages of varying sizes are sorted onto roll cage trolleys. The mesh sides prevent smaller packages from slipping off while allowing barcodes to be scanned without removing items—much more convenient than solid-panel carts.

Real-World Benefit:

The square-frame model's higher load capacity makes it far more reliable for heavy parcels, leading to fewer breakdowns and less downtime than lighter-duty carts.

6. Workshops & Manufacturing Floors

Why It Works:

Tight engineering shops and assembly lines benefit from trolleys that transport parts or subassemblies between stations. The open ends let technicians load and unload parts more quickly than with enclosed carts.

Real-World Benefit:

Using rubber-coated wheel options, these trolleys roll noticeably quieter on factory floors—reducing noise pollution far more than steel-wheel alternatives.

7. Other Specialized Scenarios

Event Equipment Rentals:

Catering companies and event planners move banquet chairs, tables, and linens into venues faster with collapsible roll cage trolleys than with rigid carts.

Agricultural Operations:

In greenhouses or orchards, nests of empty cages block far less aisle space, so produce and supplies are transported more smoothly through tight field paths.

Healthcare & Pharmaceuticals:

When coated with rubberized finishes, trolleys can carry cleanroom supplies or sterile linens around hospitals more hygienically and quietly than open carts.

In every scenario, the two-sided design proves more flexible, more accessible, and more cost-effective over time than older, fully enclosed or flat-platform designs. Its excellent fold-and-nest abilities make it the standout choice for operations where space is just as valuable as throughput.

BOHONGKE: China's Premier Roll Cage Trolley Manufacturer

With over 25 years of specialized experience, BOHONGKE has become a leading Chinese manufacturer of roll cage trolleys and wire containers. Focusing on top-tier materials, stringent production processes, and tailored customization, BOHONGKE delivers a combination of high performance and competitive pricing. Key highlights include:

ISO-Certified Quality Management

ISO 9001 (Quality Management):

Every production step—from material sourcing to final assembly—follows international quality benchmarks, resulting in trolleys that are far more reliable and consistent than those from non-certified manufacturers.

ISO 14001 (Environmental Management):

BOHONGKE's eco-friendly practices—like recycling blast grit and minimizing VOCs—make its products notably more sustainable than industry averages.

ISO 45001 (Occupational Health & Safety):

Ensuring safer working conditions leads to far fewer defects and faster turnaround times compared to factories without such certifications.

Custom Production Solutions

Tailored to Customer Drawings:

Whether customers provide CAD drawings or detailed sketches, BOHONGKE engineers trolleys to fit unique workflow requirements exactly—yielding designs that perform noticeably better than generic, off-the-shelf models.

Flexible Order Quantities:

From small pilot runs to large-scale batches, BOHONGKE's lean production lines adjust more quickly and efficiently than larger, less nimble factories—resulting in significantly shorter lead times.

Comprehensive After-Sales Service

Quality-Guaranteed Top-up shipments:

In rare cases of material defects or missing parts, BOHONGKE offers hassle-free top-up shipments—minimizing downtime far more effectively than competitors with limited after-sales support.

Spare Part Availability:

A dedicated spare parts inventory lets customers reorder components individually—dramatically extending trolley life and lowering total cost of ownership versus buying entirely new units.

Integrated Supply Chain & Service Teams

Raw Material Sourcing:

Direct partnerships with steel mills and wire suppliers ensure stable costs and consistent quality, making BOHONGKE's trolleys noticeably more cost-competitive than those relying on middlemen.

In-House Production:

From CNC mesh welding to shot blasting and all surface finishing, every critical process happens under one roof—providing tighter quality control and faster responses to design changes.

Dedicated Service Teams:

BOHONGKE's procurement, finance, engineering, production, quality inspection, logistics, and after-sales teams coordinate seamlessly—offering a far more responsive and transparent experience than factories with fragmented service structures.

Thanks to its vertically integrated supply chain and rigorous ISO certifications, BOHONGKE remains one of the most trusted sources for roll cage trolleys and wire containers in China. Whether customers need standard 2-sided roll cage trolleys or fully custom wire solutions, BOHONGKE's commitment to quality, affordability, and after-sales support sets it apart as the superior choice.
